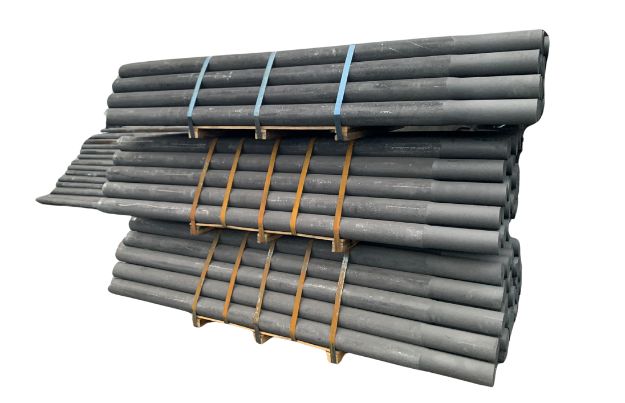

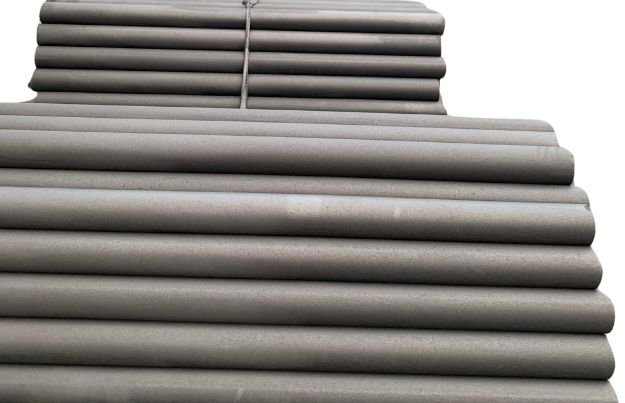

Extruded Graphite

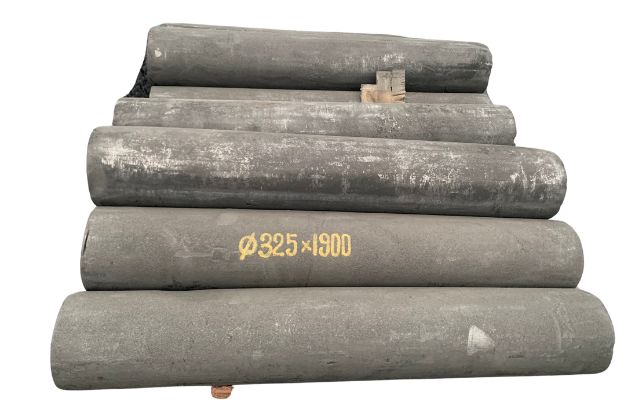

- Diameter φ45-325mm size

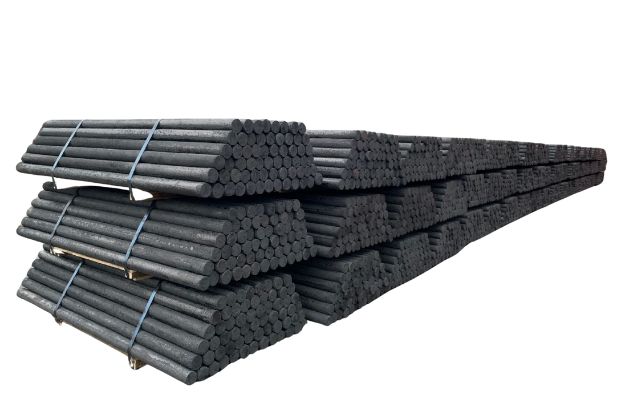

- High Purity Graphite Rods
- Physical and Chemical Indicators of Extruded Graphite
| Typical Value | Extruded Graphite | Extruded Graphite |
| Grade Name | EG 1 | EG 2 |
| Density g/cc | 1.72 | 1.63 |
| Grain Size | 0.8/2 mm | 0.8/2/4 mm |
| Resistance μΩ.m | 7 | 8 |
| Compressive Strength MPa | 40 | 31 |
| Flexural Strength MPa | 18 | 12 |
| Shore Hardness | ||
| Thermal Expansion (CTE) (20-100℃) 10-6/℃ | 2.8 | 2.5 |
| Thermal Conductivity (100℃) W/mk | 139 | 130 |
| Porosity % | ||
| Ash ppm | 1000/50 | 1000/50 |
The figures above are typical values, and are not guaranteed. For more information, please do not hesitate to contact us.
