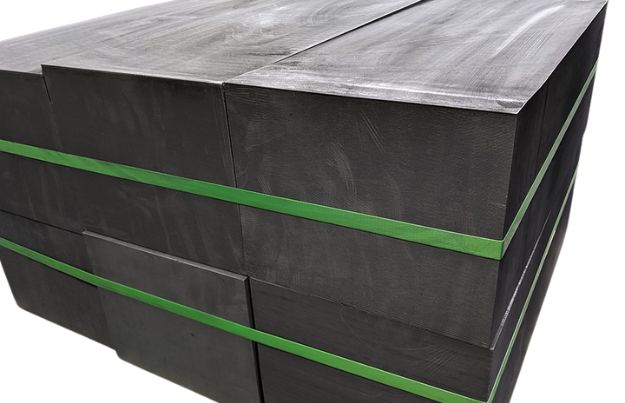

Vibrated Graphite

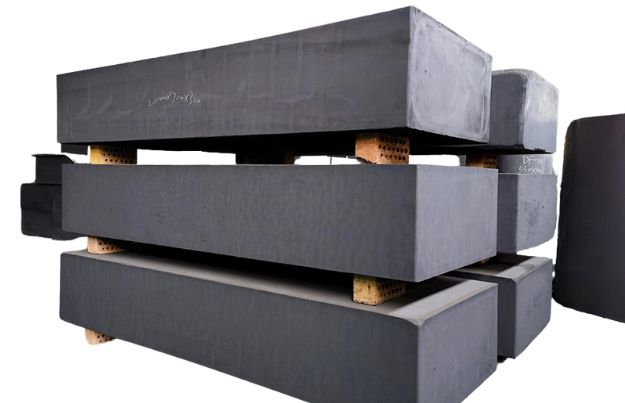

- High Purity Graphite Block

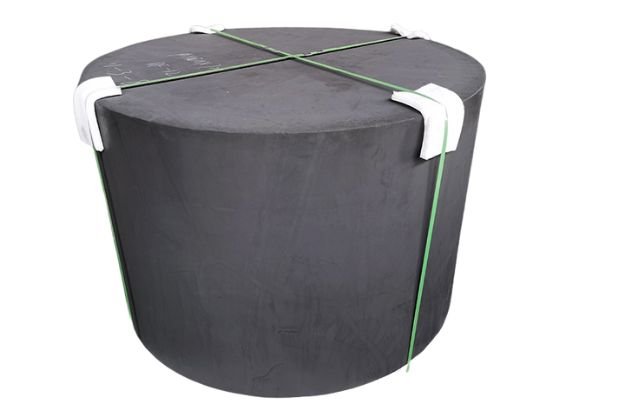

- High Purity Graphite Round

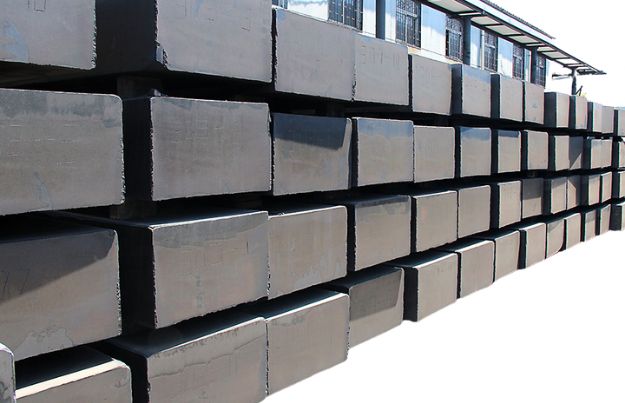

- Large Size Material
- Physical and Chemical Indicators of Vibrated Graphite
| Typical Value | Vibrated Graphite | Vibrated Graphite | Vibrated Graphite |
| Grade Name | VG 1 | VG 2 | VG 3 |
| Density g/cc | 1.75 | 1.68 | 1.60 |
| Grain Size | 0.8 mm | 0.8/2 mm | 0.8/2/4 mm |
| Resistance μΩ.m | 7.7 | 8 | 8.5 |
| Compressive Strength MPa | 40 | 28 | 19 |
| Flexural Strength MPa | 19 | 12 | 7 |
| Shore Hardness | |||
| Thermal Expansion (CTE) (20-100℃) 10-6/℃ | 2.3 | 2.3 | 2.2 |
| Thermal Conductivity (100℃) W/mk | 140 | 139 | 135 |
| Porosity % | |||
| Ash ppm | 1000/50/10 | 1000/50 | 1000/50 |
The figures above are typical values, and are not guaranteed. For more information, please do not hesitate to contact us.
